Re: 1967 Family Patrol Project

Post by RiverPatrol »

faux40 wrote: Tue Jul 30, 2024 11:21 am
RiverPatrol wrote: Tue Jul 30, 2024 9:50 am It will be interesting watching you put the 5 speed in. I don't think anyone has documented that yet.
Doesn't mean I'll get it right! Well, at least not the first time... because I do it right because I do it twice! ;-)
That's the best part, because you'll document your mistakes AND the corrections. :D
Beyond any hope for intervention

User avatar
Administrator
Administrator
Posts: 1225
Joined: Sun Jul 28, 2013 12:45 am
Location: Roseville, California
Has thanked: 646 times
Been thanked: 1149 times
Contact:

Re: 1967 Family Patrol Project

Post by faux40 »

And so it begins -- I learn stuff all the time!

This is with the transmission just barely in place -- the studs aren't long enough to extend out to have some threads for a bolt to start on
Notice the bolt in the pinch between trans and bell housing -- that's the bolt that secures the shaft the 2wd/4wd & Hi/Lo shifters will reside -- there is a recess in the trans for that bolt to hide in. But, that means you cannot get to it at all without backing the trans up about 1/2" from the bell housing.
There's its little cubby hole!
The trans binds at about 3/8" from fully in. I assumed that this binding was thick paint and cruft, so I'll use the bolts to draw it in
Well, there we go! A bolt on each side and one nut on the lower side of the trans. This is where it will ultimately reside.
Once fully installed, I went to rotate the trans shaft (it's in 4th gear (1:1) -- Nope. No rotation at all. Not sure why. It rotated fine before... Hmmm
It's a toss up...
  • Is it binding inside the pilot bearing? That bearing had plenty of clearance before being installed, but there's really no way to check it without inserting the trans (I don't have a spare input shaft).
  • OR, is the input shaft jammed in the bushing and forcing the input shaft back INTO the transmission? Seems unlikely, but I suspect possible
  • OR, is the trans non-concentric with the crank?
Now, the best part, I cannot separate the trans from the bell housing! But, after some wrestling, I was able to use a plastic wedge between the trans and bell housing to get the them apart... whew! PLus, once backed out, the transmission spins fine once again!

If you look on top of the throwout bearing sleeve on the front bearing cover, you can see where the bell housing "shaved" the top back to fit. My guess is that what was causing the binding
Does anyone know of a service manual for the marks? Or, perhaps what transmission the innards are from? I'd like to remove the front bearing cover (above), the top cover and rear cover for cleaning and inspection... but I'm hesitant to just guess. Transmissions, much like differentials, are magic inside... and I don't wanna let that magic out!

So, what did I learn that I should record so I don't have to go through this again?
  • Test fit the trans to the bell housing BEFORE fitting it to the engine. Just to the bell housing -- not the engine. There are many possible tight points when mating the trans and bell -- Bolt alignment & diameter, the cut out in the bell housing that allows the front bearing cover/seal/throwout bearing sleeve to nest.
  • Don't install the pilot bearing into the crank until after dry fitting the trans to the engine/bell housing. This way, you'll know if the trans goes into the engine
  • With the Marks, you will need to have the shaft for the 2wd/4wd & Hi/Lo levers in place and tight before fully installing the transmission as it blocks access to the bolt once tightened down (I think that's the one further back)
J
You do not have the required permissions to view the files attached to this post.
You know you own a Patrol when…
You know you own a Patrol when…
Posts: 269
Joined: Wed Mar 18, 2015 2:33 am
Location: Canberra, Australia
Has thanked: 173 times
Been thanked: 306 times

Re: 1967 Family Patrol Project

Post by Peter60 »

faux40
I have just had my Marks 5 speed gearbox rebuilt. It took about 6 months. Currently sitting on the floor waiting till I have time to install it.
I plan to put a bit or a write-up about the process including some part nos etc on tis forum.
However I'm going away tomorrow for about a week, so I'll try and do it on my return.

Just by the way, have you mated up your transfer case with the gearbox? I think there is a 'special' output shaft in the transfer case.

Peter
Not sure if I will get there.
Not sure if I will get back.
But I usually do!!!
User avatar
Administrator
Administrator
Posts: 7815
Joined: Thu Oct 04, 2012 10:42 am
Location: Temecula, CA
Has thanked: 7690 times
Been thanked: 2476 times
Contact:

Re: 1967 Family Patrol Project

Post by RiverPatrol »

I don't know if you have this document, it states that the gears are from a Nissan truck but doesn't specify. I recall hearing once that they were from a Nissan Junior.
NISSAN G60 5 SPEED INFO.pdf
You do not have the required permissions to view the files attached to this post.
Beyond any hope for intervention

User avatar
Administrator
Administrator
Posts: 1225
Joined: Sun Jul 28, 2013 12:45 am
Location: Roseville, California
Has thanked: 646 times
Been thanked: 1149 times
Contact:

Re: 1967 Family Patrol Project

Post by faux40 »

Peter60 wrote: Wed Jul 31, 2024 7:23 am faux40
I have just had my Marks 5 speed gearbox rebuilt. It took about 6 months. Currently sitting on the floor waiting till I have time to install it.
I plan to put a bit or a write-up about the process including some part nos etc on tis forum.
However I'm going away tomorrow for about a week, so I'll try and do it on my return.

Just by the way, have you mated up your transfer case with the gearbox? I think there is a 'special' output shaft in the transfer case.

Peter
I have -- well, hopefully have -- that special output shaft.

Looking forward to the write up!
j
You know you own a Patrol when…
You know you own a Patrol when…
Posts: 269
Joined: Wed Mar 18, 2015 2:33 am
Location: Canberra, Australia
Has thanked: 173 times
Been thanked: 306 times

Re: 1967 Family Patrol Project

Post by Peter60 »

Not sure if I will get there.
Not sure if I will get back.
But I usually do!!!
User avatar
Administrator
Administrator
Posts: 1225
Joined: Sun Jul 28, 2013 12:45 am
Location: Roseville, California
Has thanked: 646 times
Been thanked: 1149 times
Contact:

Re: 1967 Family Patrol Project

Post by faux40 »

Been thinkin'... Caution!… long post ;-)

It all started with one Patrol, the ’67 Soft Top, the plan was to get it running as a family… That’s where the thread name “Family Patrol” started back in July 2013. Then I soon discovered the parts situation. You know you are in trouble with the parts guy at the Nissan dealer is stumped and “What vehicle did you say? Hmmm, haven’t heard of that one”
1569

Then I found a package deal for TWO more Patrols – Grabbed the for parts, but it turned out that one was even closer to running than our first. Here they are arriving at the house from their previous home in the little town of Washington California
1683

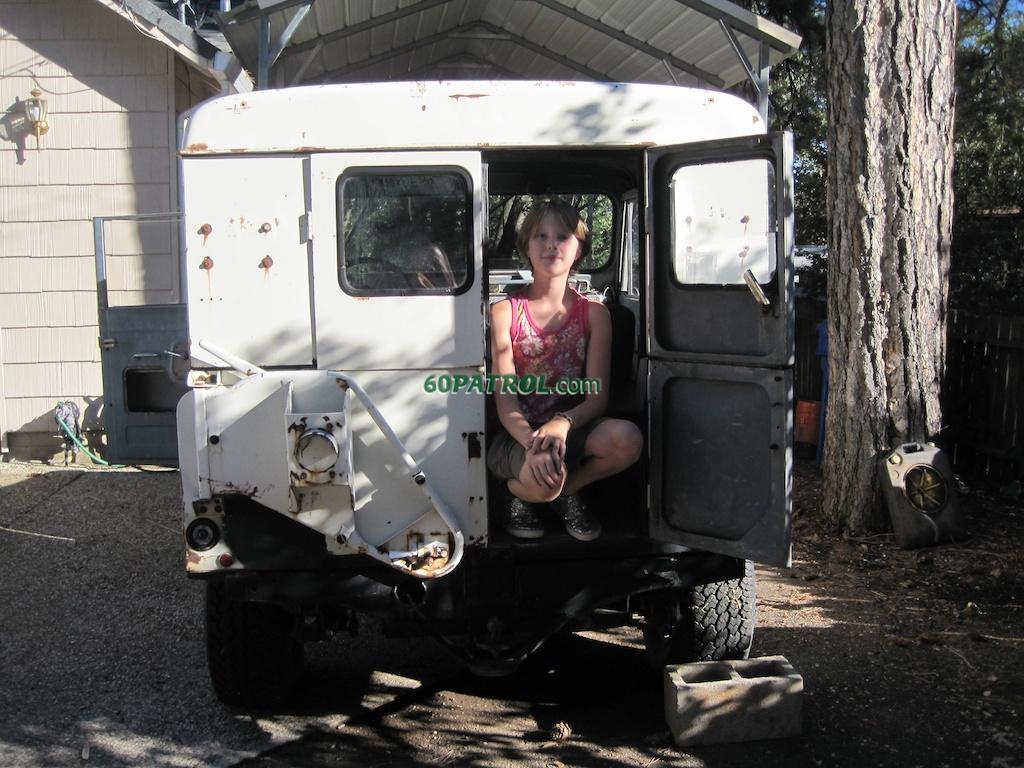

Then I stumbled on a steal for a fourth Patrol! Barritt and I drove to Magalia in the hills above Paradise to check it out
1705

My plans morphed as the fleet grew… Three kids, three running patrols! Yea! Perfect! Easy enough. I mean, how hard can it be? ;-) The kids helped removing and reinstalling the engine
2152

We focused on Aerogirl – the ’67 hardtop from the second batch of patrols. After almost exactly one year of work, we took Aerogirl for the first drive on August 3, 2014… Literally 10 years ago last week. The kids were still small. A trip to the gas station then a trip to 31 flavors ice cream! They LOVED IT and not just because ice cream was involved! Always an adventure!
4499

For the next four years, we drove the Patrol to all sorts of local places – To ice cream (over and over), to Folsom Lake, to the store, to the drive in! Joe even got to drive it once he had his license. Three years and two months after its first drive, Joe was driving it when the brakes failed, and he bonked a tree. Luckily, he was on our residential street at a fairly low speed… He wasn’t hurt, the tree was fine, but the Patrol took a pretty big hit. Zero brakes will do that to you! And, by zero, I mean ZERO! Gotta love single circuit brake systems…
6016

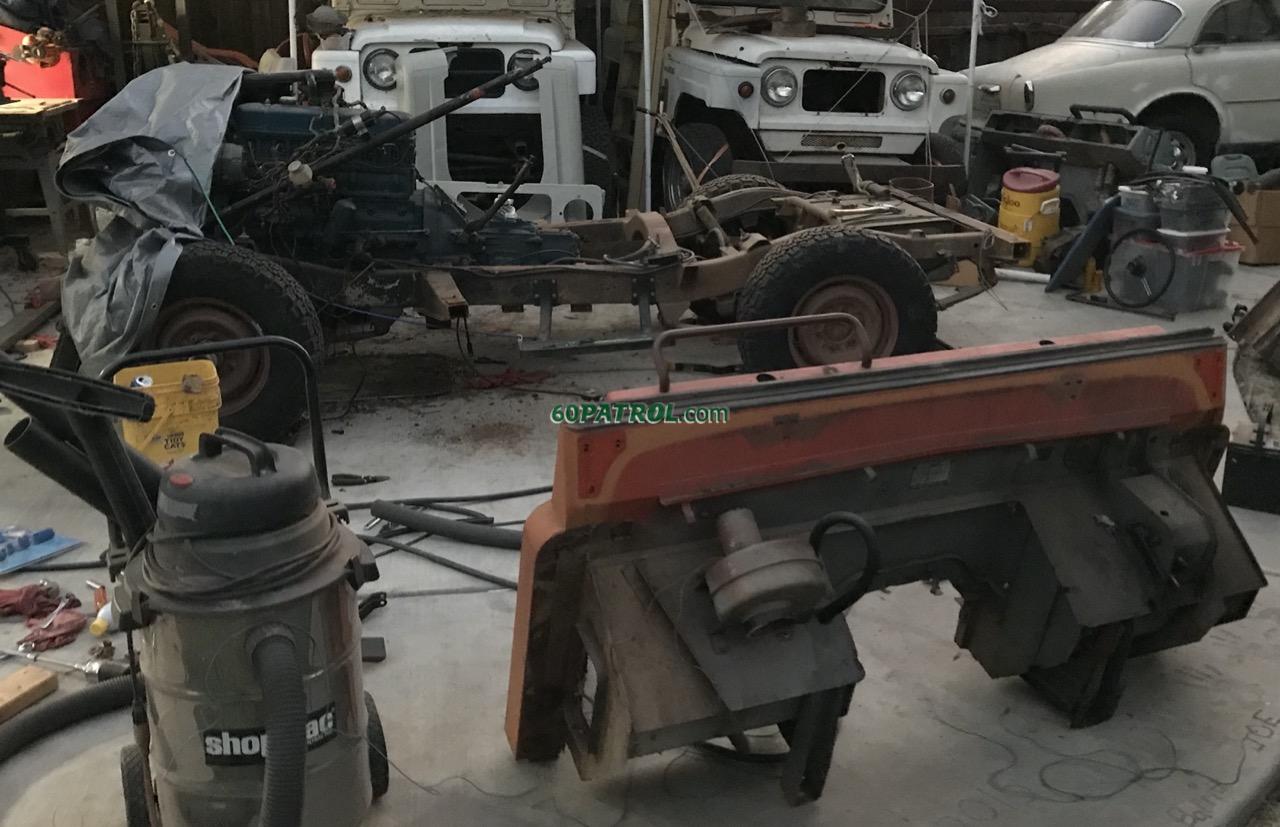

Still having visions of three, or at least two, running Patrols, I decided to not only repair the crash damage, but to rebuild Aerogirl completely from the ground up. And the big project got bigger…
