Speedometer Disassembly Guide

Post by faux40 »

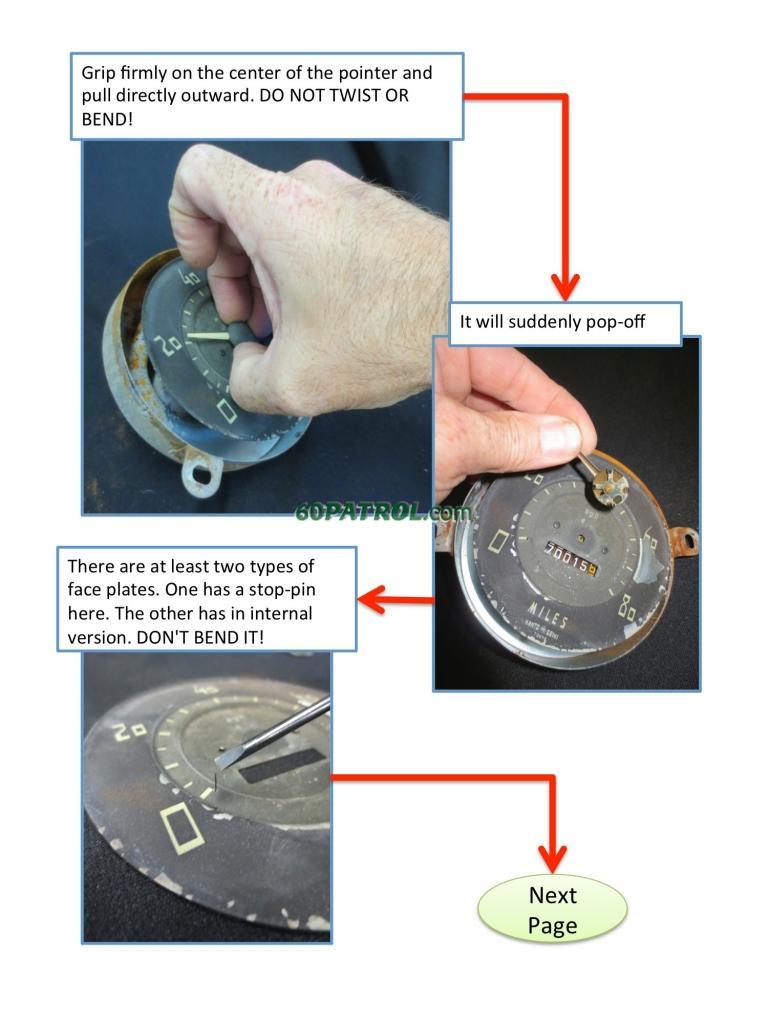

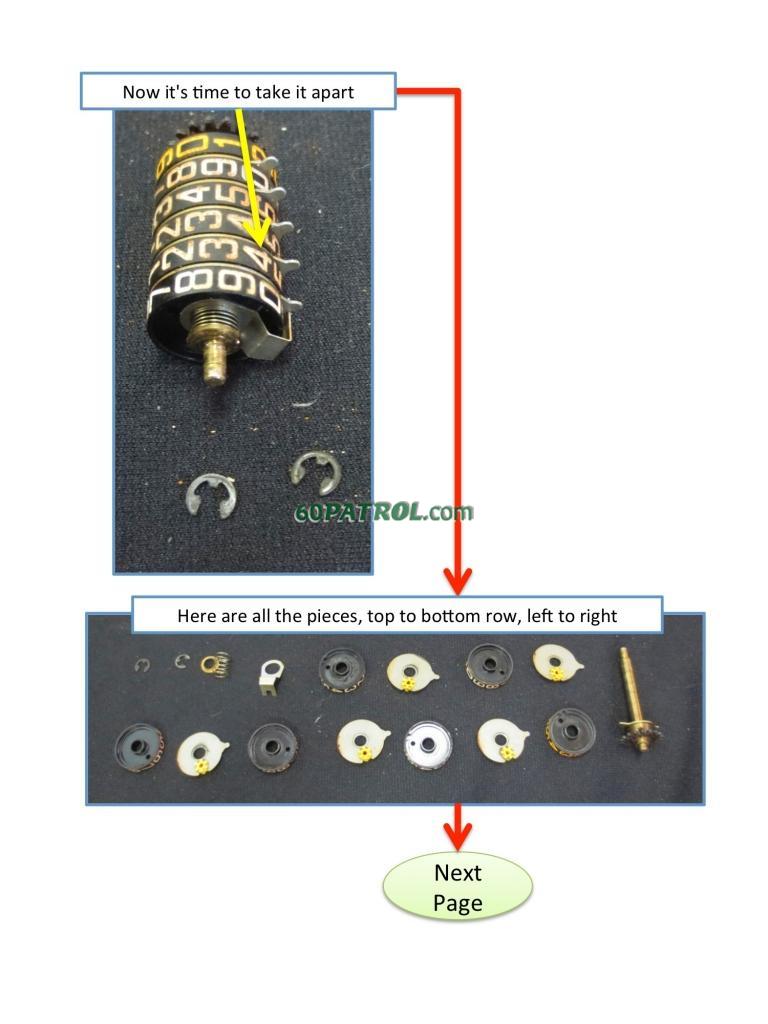

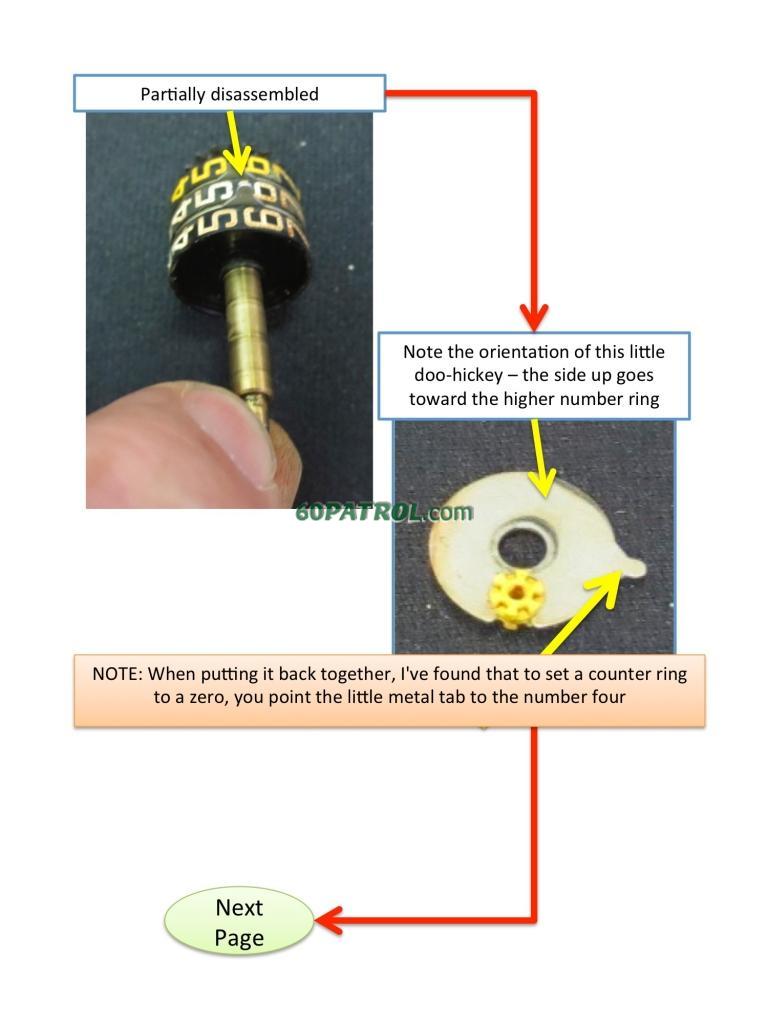

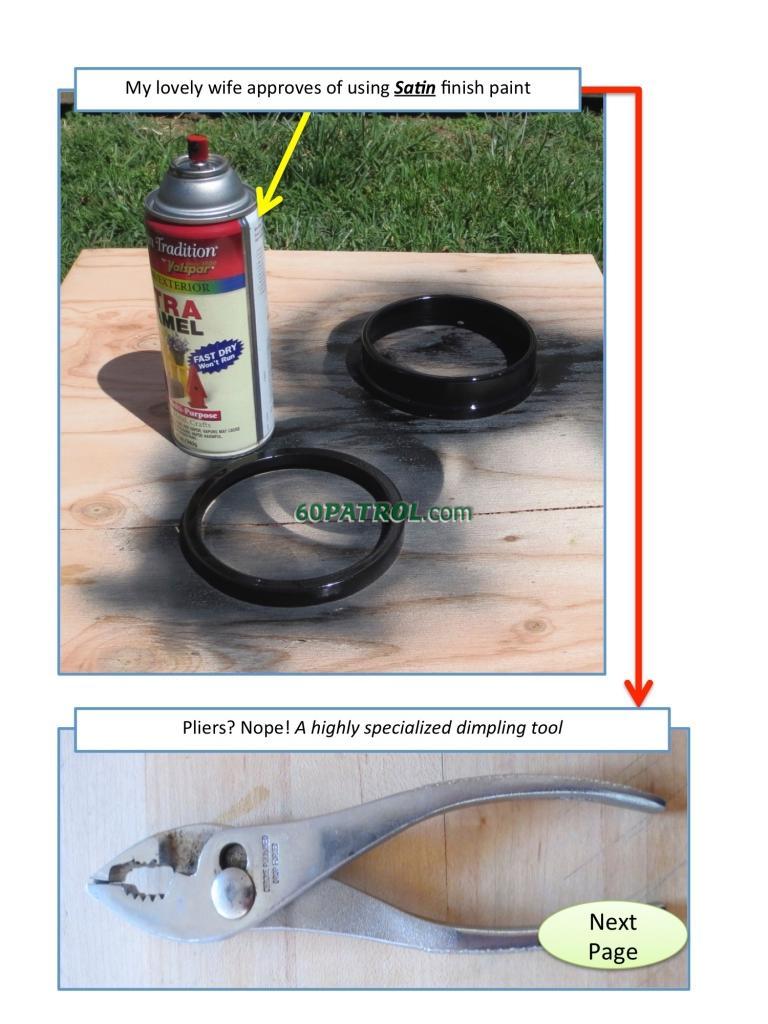

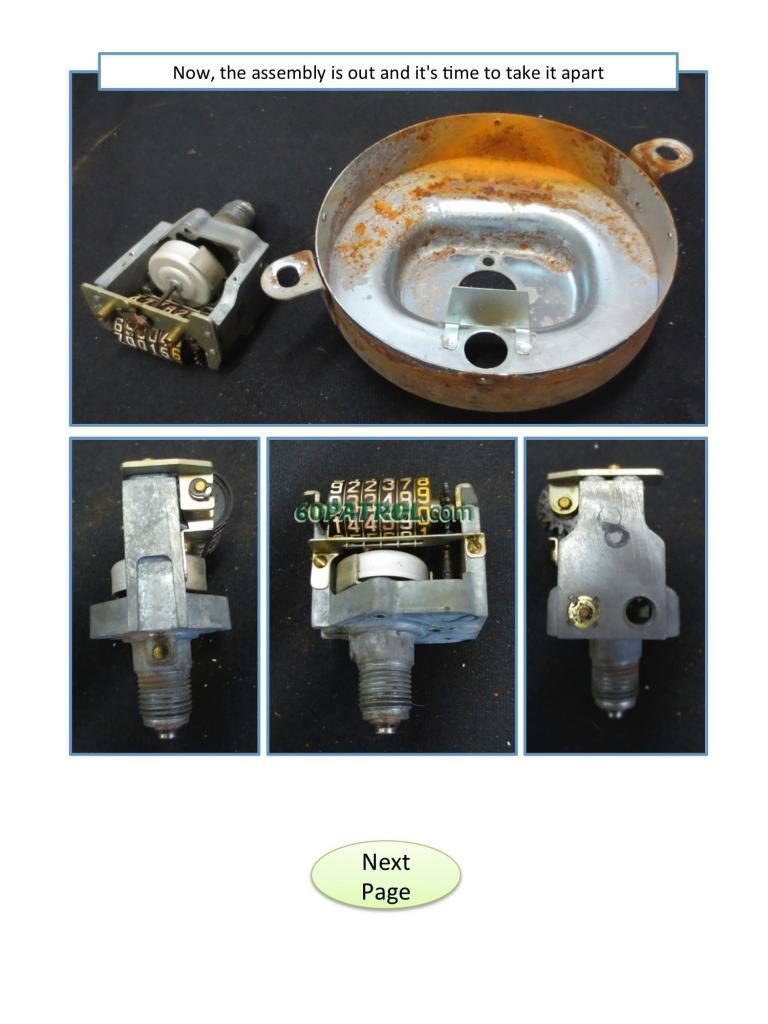

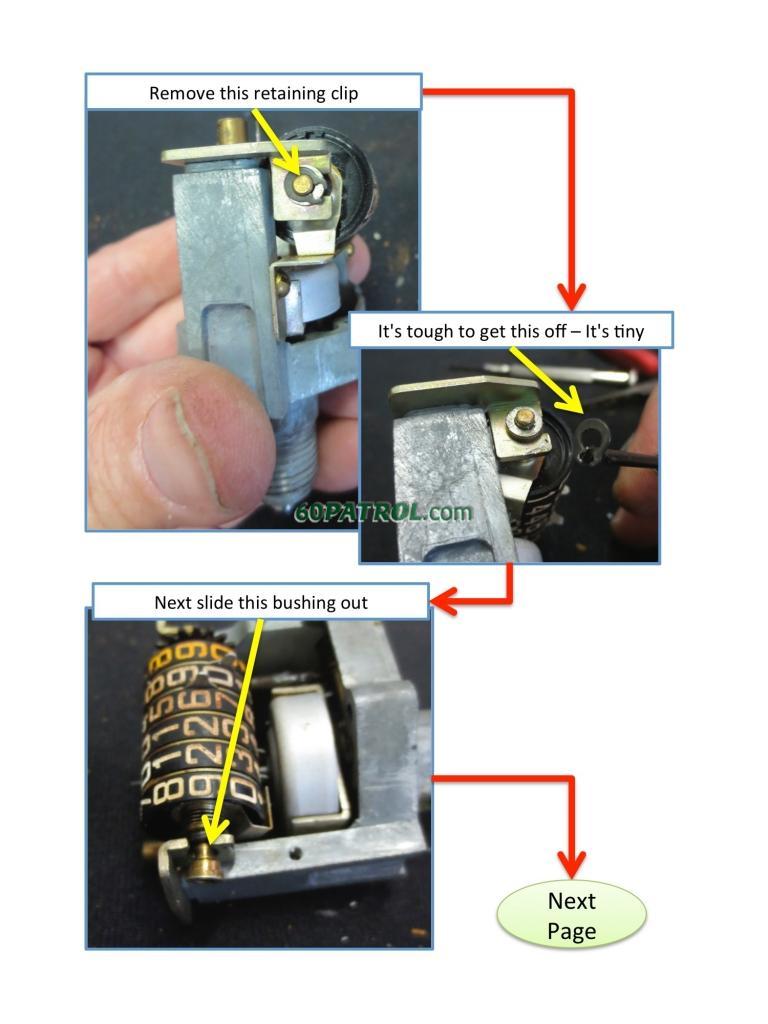

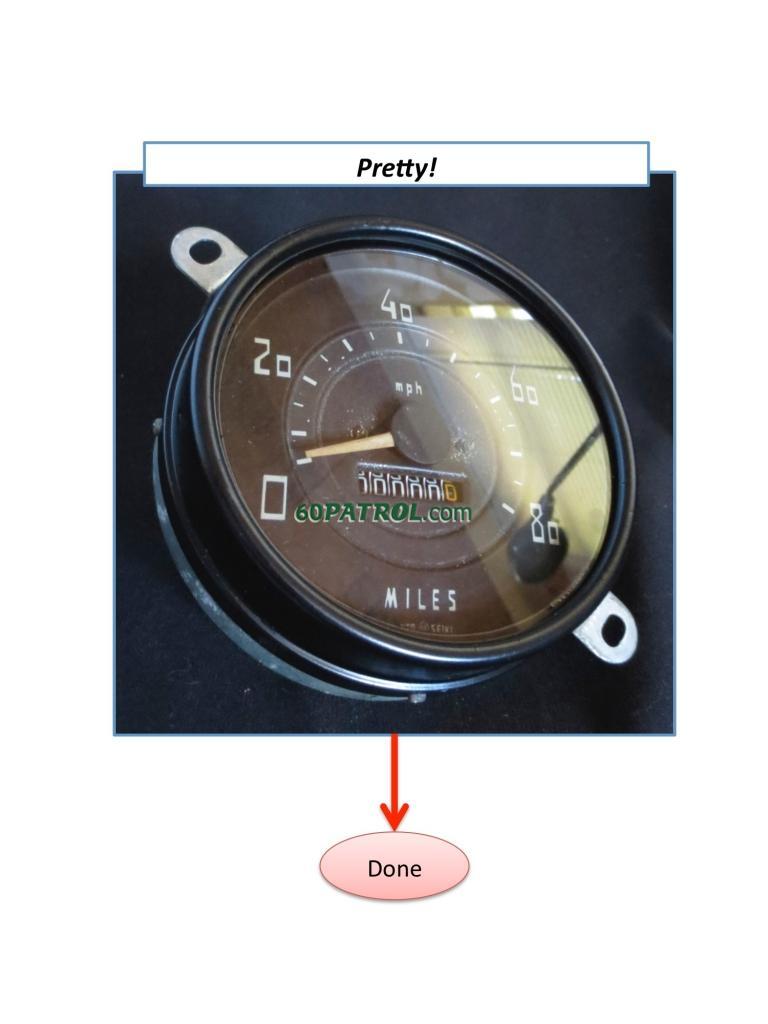

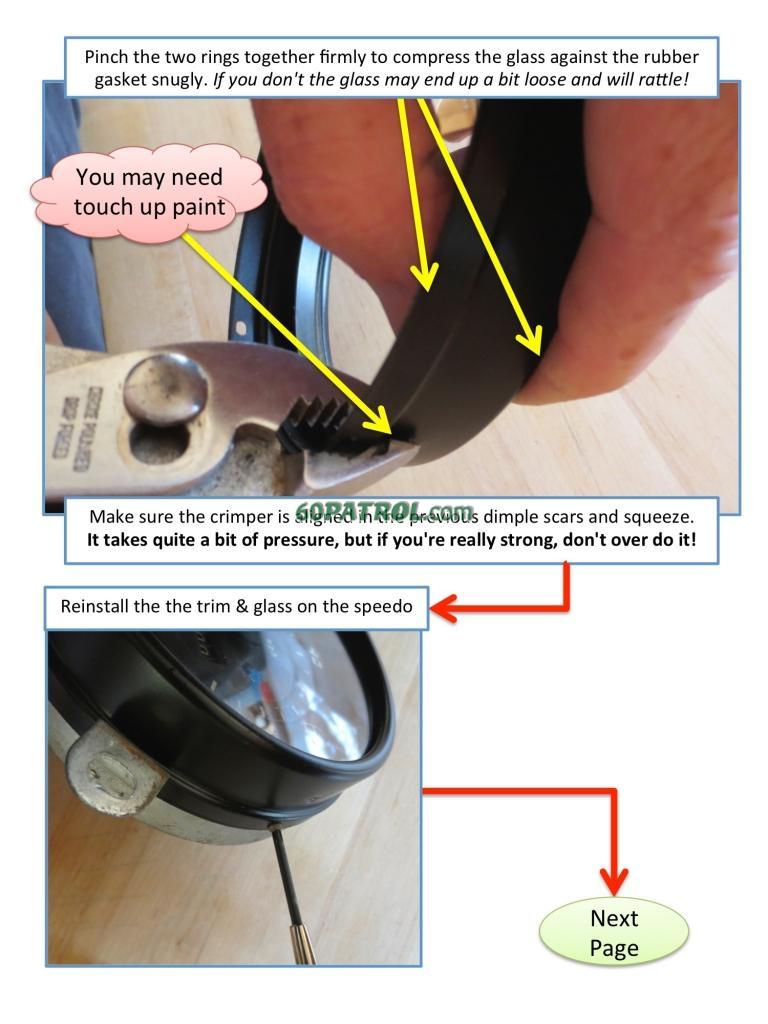

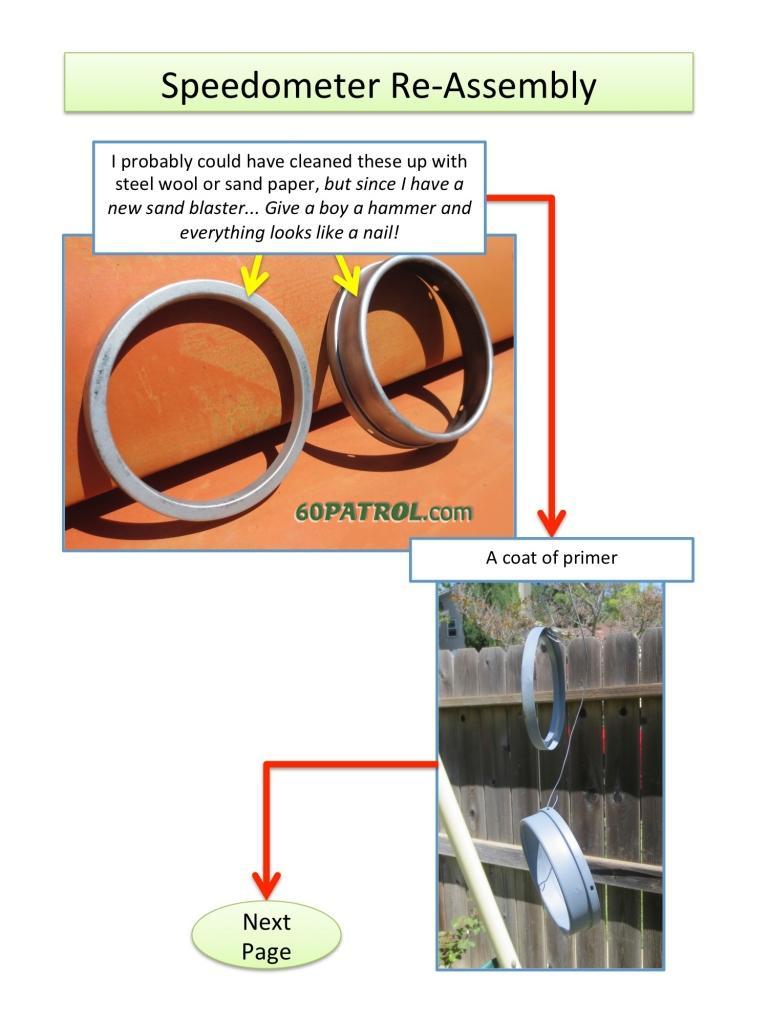

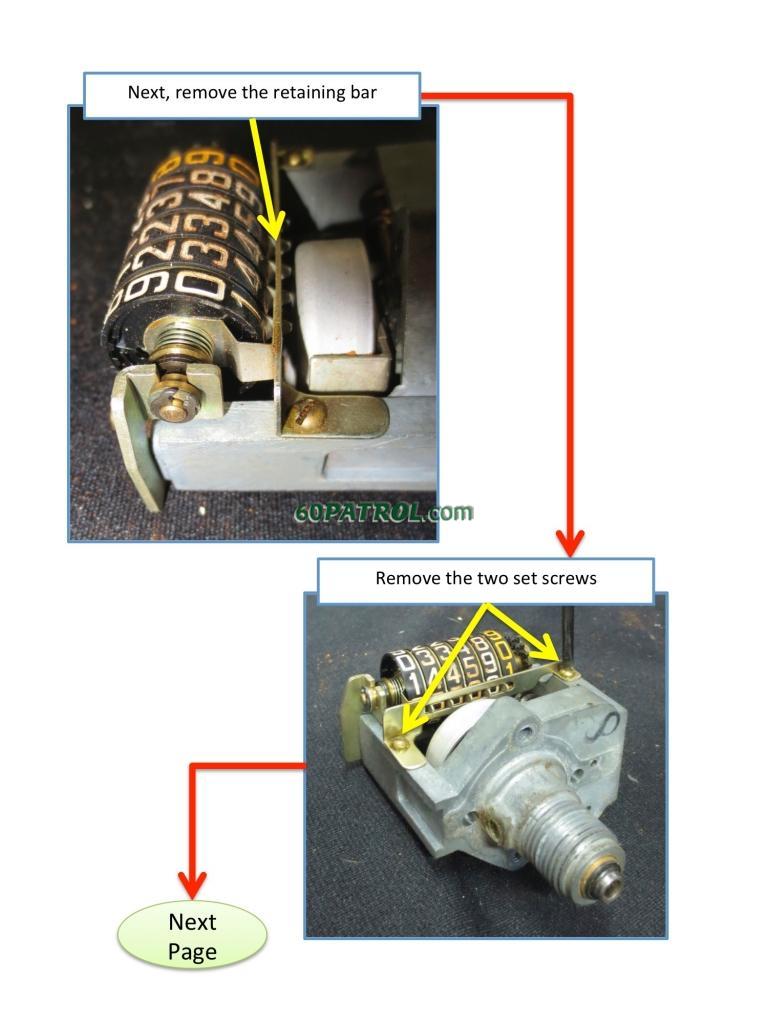

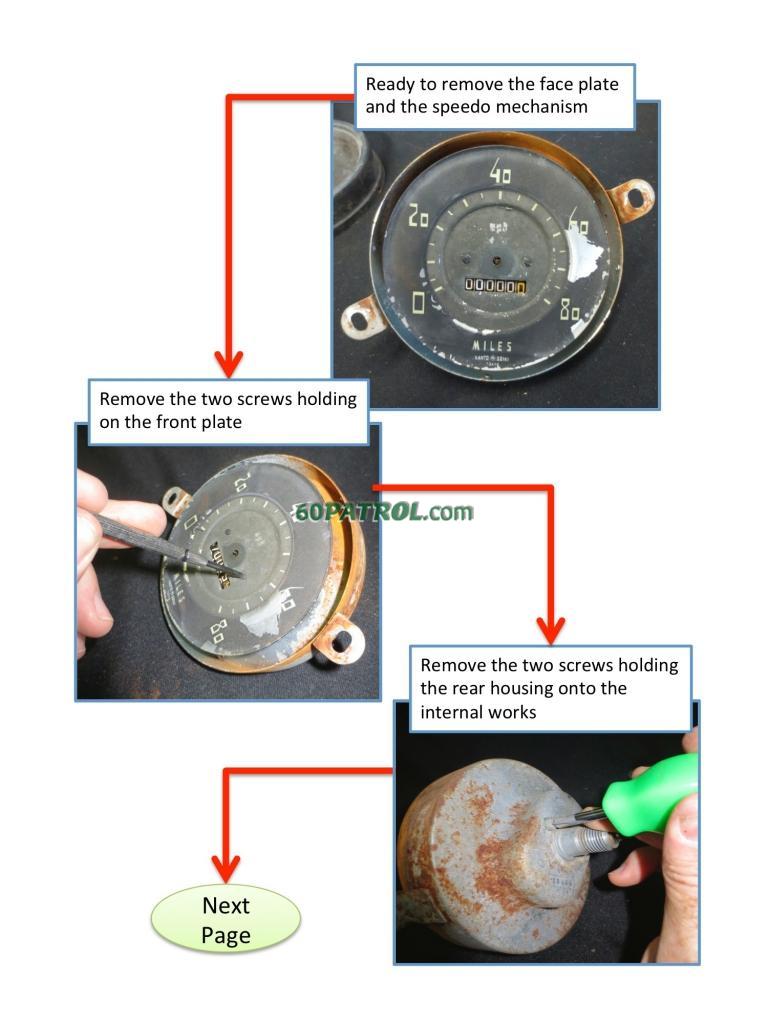

This might be helpful... I put together a guide to disassembling a Patrol speedometer. The pdf file is here:

http://balestrini.net/public/family_pat ... _guide.pdf

And now... The guide!

John

NOTE: Updated to fix a bunch of typos and include some reassembly stuff... 5/11/2014

2759

2758

2757

2756

2755

2754

2753

2752

2751

2750

2749

2748

2747

2746

2745

2744

2743

2742

John
